Features
- 145 kWe net (standard power block is 145 kWe; can be banked together for larger applications)
- Fewer Modules (less setup time and cost)
- Advanced Operating System Automation
- Modular, Transportable, Flexible
- Small Footprint (30 ft. x 30 ft.)
- Makes No Water; Uses No Water
- Processes Wide Variety of Feedstocks: (wood chips, nut shells, stone fruit seeds, more)
- Integrated Interconnection Equipment
- Low Maintenance Requirements
- Clean & Green (meeting EPA requirements)
Benefits
- Produces Electricity and Heat
- Reduces Power, Heat, Cooling Costs
- Stabilizes Future Energy Costs
- Higher Availability Than Solar and Wind (Sun and Wind Not Needed; 80+% Availability)
- Factory Built and Tested
- Utility Compliant
- Converts On-Site or Nearby Waste to Energy
- Supports Net Zero Energy & Waste Goals
- Creates Jobs - Helps The Local Economy
- Easy, Low Cost Installation
Specifications
- 145 kWe net Modular Systems (sea level)
- Electricity: 3,480 kWh per 24 hours
- Heat: ~400,000 Btu/hour (CHP)(option for additional heat)
- Converts 2.0 lbs. feedstock/kWh(~3.5 dry tons/day)
- Syngas: ~ H2-17%, CO-20%, CH4-2%, CO2-8%, N2
- Foot Print: 30 ft x 30 ft.
- Complies With Utility Interconnection Requirements
- ~80% Availability (30 days between scheduled maintenance)
- Modules: Gas Production & Cooling, Gas Filtering,Power Generation & CHP, Feedstock Conditioning & Feeding (not all modules are required for all applications)

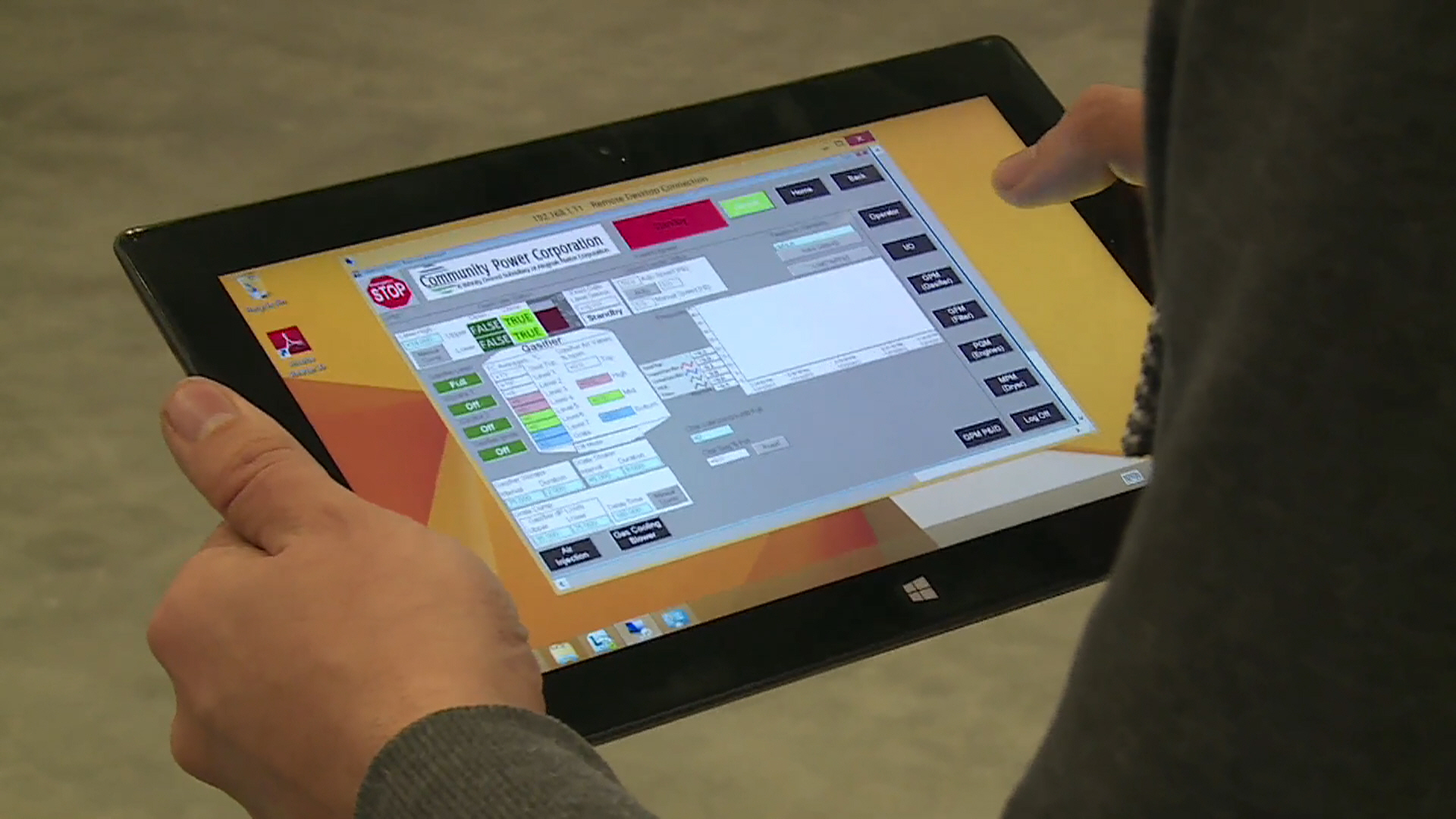

Gasifier Remote Control and Monitoring

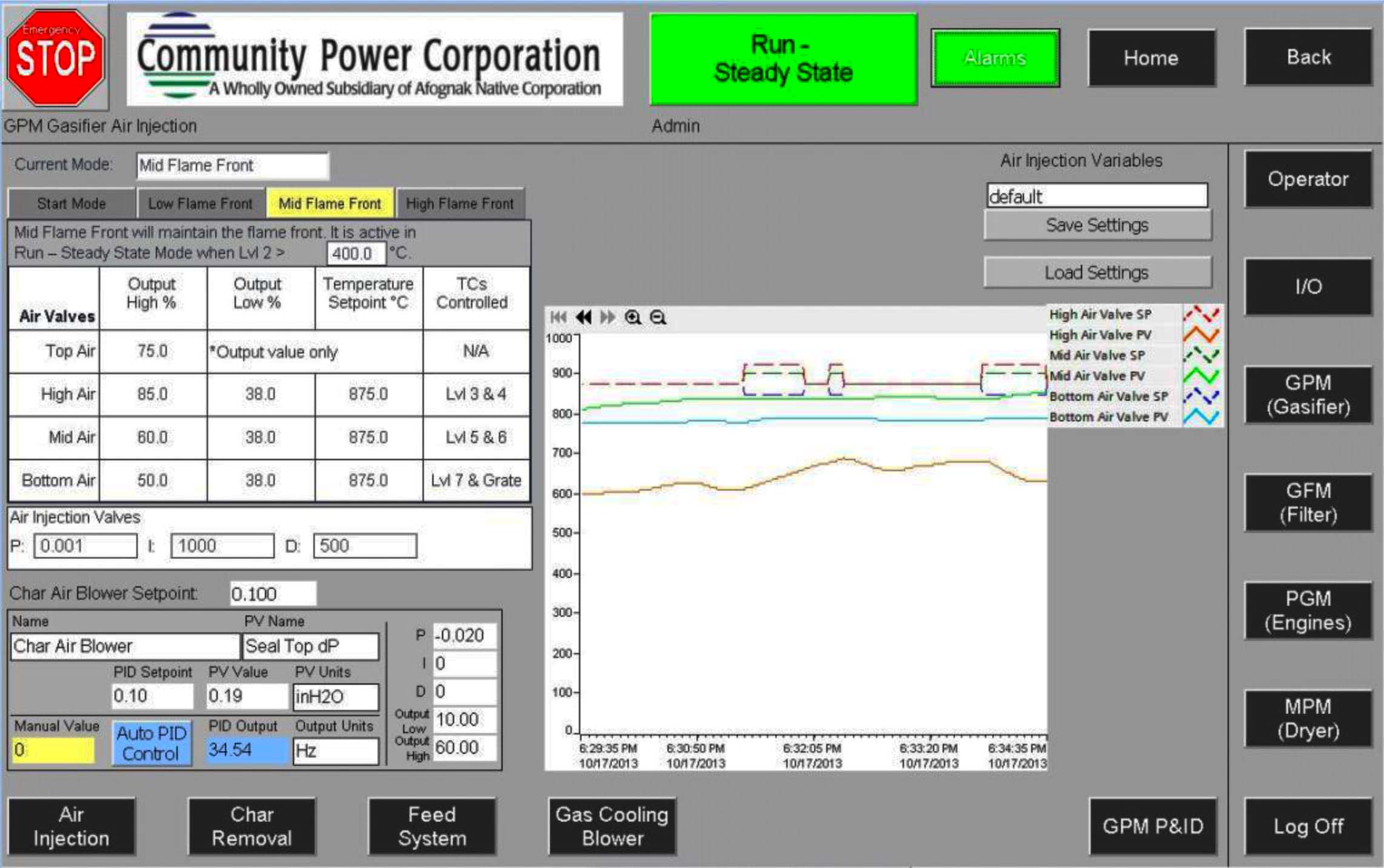

System Control Screen
